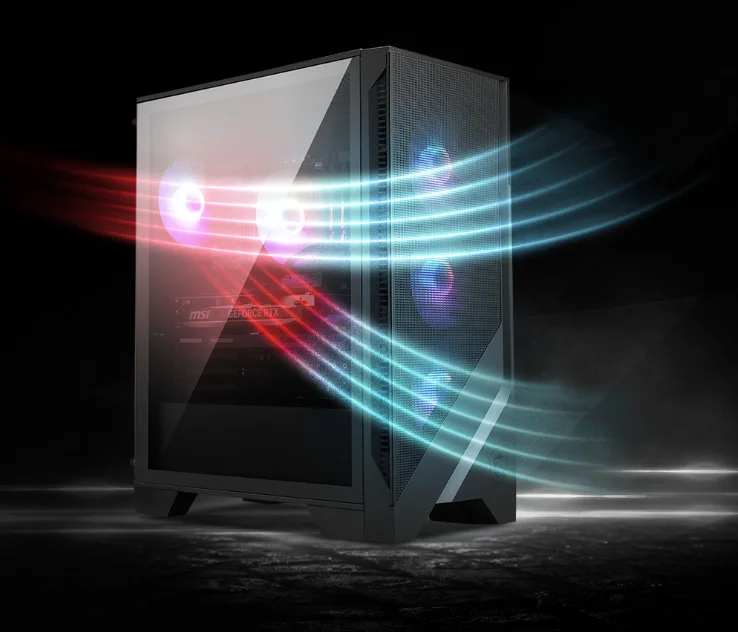

MSI Codex R2 D14NUC7-416US Gaming Desktop w / NVIDIA GeForce RTX 4060 8GB GDDR6 (Core i7-14700F)
Intel 14th Gen Core i7-14700F & ARGB Fan Air Cooling, RTX 4060 (8GB) GDDR6, 32GB DDR5 5600MHz, 1TB NVMe Gen 4 SSD, Keyboard & Mouse Included
Codex R2 D14NUC7-416US824142398067EX810414
Pre-orderNew1 Year (USA)
- Color
- Forge 122RForge 122R-CForge 123R
- Graphics Card
- RTX 4060 (8GB)
- Processor
- Core i5-13400FCore i7-14700F
- Memory (RAM)
- 16GB DDR5 5600MHz32GB DDR5 5600MHz
- Storage
- 1TB NVMe SSD
- Operating System
- Windows 11
MSI Codex R2 D14NUC7-416US (Intel 14th Gen), Intel Core i7-14700F (2.5GHz - 5.6GHz) Processor, 16GB (2x 8GB) DDR5 5600MHz Memory, 1TB PCIe NVMe Gen 4 SSD, NVIDIA GeForce RTX 4060 (8GB) GDDR6 Graphics Card, Microsoft Windows 11 Home, RJ45 (2.5Gbps) Intel I219V 1Gbps LAN, Wi-Fi 6E, Bluetooth 5.2, HDMI, 3x 2x USB 3.2 Type A (Gen 1), USB 3.2 Type C (Gen 1), 4x USB 2.0, LED Switch button, Keyboard & Mouse Included
Description
Specification
Benchmarks
| General | |
| Brand | MSI |
|---|---|
| Model | Codex R2 D14NUC7-416US |
| Color | Forge 123R |
| Processor & Chipset | |
| Type | Intel 14th Gen Raptor Lake Core i7-14700F Processor |
| # of Cores | 20 Cores : 8 Performance-cores and 12 Efficient-cores |
| # of Threads | 28 |
| Clock Speed | 2.5 GHz |
| Max Turbo Frequency | 5.6 GHz |
| Intel Smart Cache | 33 MB Intel Smart Cache |
| Chipset | Intel H610 |
| Software | |
| Operating System | Microsoft Windows 11 Home |
| Motherboard Model Number | H610M-G |
| Graphics | |
| GPU (Graphic Accelerator) | NVIDIA GeForce RTX 4060 (8GB) GDDR6 Graphics Card |
| Memory | |
| Standard Memory | 32GB (2x 16GB) DDR5 5600MHz |
| Number of SODIMMS | 2 Socket, Max Memory 96GB |
| Hard Drive & Optical Drive | |
| HDD Capacity | 1TB PCIe NVMe Gen 4 SSD |
| Expansion Slots | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x1 slot |
| Interfaces/Ports | |
| Expansion Slots | 1x Mic in / 1x Headphone-out |
| Video Port | 3x DisplayPorts-out (1.4a) 1x HDMI-out (2.1) |
| Front I/O Port | 1x USB 3.2 Type A (Gen 1) 5Gbps 1x USB 3.2 Type C (Gen 1) 5Gbps |
| Rear I/O Port | 2x USB 3.2 Type A (Gen 1) 5Gbps 4x USB 2.0 |
| Input Device | |
| Keyboard | Keyboard & Mouse Included |
| Special Features | LED Switch button |
| Audio | |
| Audio | 7.1 HD Audio (Realtek AL897) |
| Network & Communication | |
| Network | RJ45 (2.5Gbps) Intel I219V 1Gbps LAN Controller Wi-Fi 6E Bluetooth 5.2 |
| Power | |
| Power Supply | 650W |
| Power Efficiency Level | 80 Plus Gold |
| Physical Characteristics | |
| Dimension | 16.1" x 8.3.8" x 19" (L x W x H) |
| Unit weight | 21.3 Ibs |
| Warranty | |
| Manufacturer Warranty | 1 Year Warranty |
