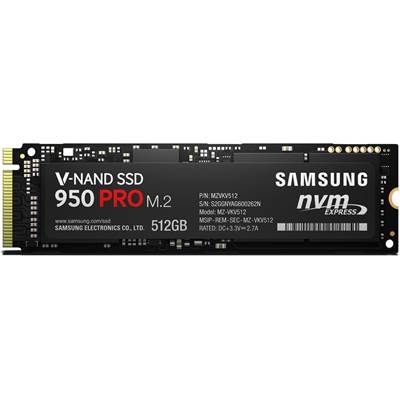

512GB Samsung 950 PRO M.2 NVMe SSD

 512GB Samsung 950 PRO M.2 NVMe SSD
Image 1Image 2Image 3Image 4Image 5
  • $327.00
  • FREE

Found a Better Price?

OR
Up to 2,500 MB/s (Seq. Read) | Up to 1,500 MB/s (Seq. Write) | PCIe 3.0 (x4) | NVMe (1.1) | M.2 (2280) | AES 256-bit
3.9 out of 5, based on 146 votes

MZ-V5P512BWEX636626

42 In StockNew5 Year

Capacity
256GB512GB
Warranty
5-Year or 200 TBW5-Year or 400 TBW
Samsung 950 Pro Series MZ-V5P512BW Internal Solid State Drive (SSD), M.2 (2280) Form Factor, 512GB Capacity, Up to 2,500 MB/s (Seq. Read), Up to 1,500 MB/s (Seq. Write), PCIe 3.0 x4 (up to 32 GB/s), NVMe 1.1 Interface, Samsung UBX Controller, Samsung V-NAND Storage Memory, Samsung 512 MB Low Power DDR3 SDRAM Cache Memory, 1.5 Million Hours Reliability (MTBF).
Description



Samsung 950 PRO

Level up to unmatched performance, power efficiency and endurance

If you're a heavy workload professional searching for an SSD with uncompromising power and performance, look no further. The next-generation Samsung 950 PRO delivers exceptional performance for professionals.
This cutting-edge V-NAND-based NVMe SSD supports PCI Express Gen 3 x4 lanes, providing a higher bandwidth and lower latency to process a massive amount more data than SATA SSDs. Presented in a compact M.2 form factor, the future-oriented 950 PRO is ideal for professionals using high-end PCs and workstations.

* PCI Express and PCIe are registered trademarks of PCI-SIG.





Experience a next-generation SSD today

Equipped with the enhanced bandwidth of the NVMe interface, the 950 PRO is ideal for intensive workloads, such as computer-aided design, data analysis and engineering simulations. It outperforms SATA SSDs by over 4.5 times in sequential read and by over 2.5 times in sequential write, delivering the speeds of 2,500 MB/s and 1,500 MB/s respectively.*

* This reflects the maximum performance of 950 PRO 512 GB compared to 850 PRO 512 GB.
Results may vary based on the user environment.



Save power while maintaining peak performance

If you're in the midst of performing a complex data analysis or engineering simulation on your laptop, you surely don't want your battery to run out. Consuming just 5.7 W at peak workloads, the 950 PRO secures battery life while maintaining superior performance levels. In standby mode, the 950 PRO consumes only 2.0 milliwatts (mW) of power, less than half the power consumption of a SATA in Device Sleep Mode.*

* This reflects the maximum power consumption of 950 PRO 512 GB compared to 850 PRO 512 GB. Results may vary based on the user environment.





Maximize endurance under heavy workloads

The innovative V-NAND technology in the 950 PRO increases endurance and prolongs the lifespan with insulators that cause less stress and are more resistant to wear under heavy client workloads over a 5-year period.* The 950 PRO also features Dynamic Thermal Throttling (DTT) technology, which controls the temperature of the device to reduce overheating and maintain a high level of sustained performance.

* 5 years or TBW (256 GB : 200 TB, 512 GB : 400 TB), whichever comes faster.





Specification
General
BrandSamsung
Series950 Pro
ModelMZ-V5P512BW
HighlightsSamsung 950 Pro Series MZ-V5P512BW Internal Solid State Drive (SSD), M.2 (2280) Form Factor, 512GB Capacity, Up to 2,500 MB/s (Seq. Read), Up to 1,500 MB/s (Seq. Write), PCIe 3.0 x4 (up to 32 GB/s), NVMe 1.1 Interface, Samsung UBX Controller, Samsung V-NAND Storage Memory, Samsung 512 MB Low Power DDR3 SDRAM Cache Memory, 1.5 Million Hours Reliability (MTBF).
Specifications
ApplicationClient PCs
Capacity512 GB (1 GB=1 Billionbyte by IDEMA)
Form FactorM.2 2280
InterfacePCIe 3.0 x4 (up to 32 GB/s) NVMe 1.1
DimensionMax. 80.15 x 22.15 x 2.38 (mm) (W x H x D)
WeightMax. 10g
Storage MemorySamsung V-NAND
ControllerSamsung UBX Controller
Cache MemorySamsung 512 MB Low Power DDR3 SDRAM
SoftwareMagician Software for SSD management
Installation KitNot Available
Warranty5 Year Limited Warranty or 400 TBW Limited Warranty
Special Feature
TRIM SupportTRIM Supported
S.M.A.R.T SupportS.M.A.R.T Supported
GC (Garbage Collection)Auto Garbage Collection Algorithm
Encryption SupportAES 256-bit for User Data Encryption
TCG Opal Family Spec and eDrive(IEEE1667) to be supported by FW update
WWN SupportN/A
Device Sleep Mode SupportYes
Performance
Sequential ReadUp to 2,500 MB/sec
Sequential WriteUp to 1,500 MB/sec
Random Read (4KB, QD32)Up to 300,000 IOPS
Random Write (4KB, QD32)Up to 110,000 IOPS
Random Read (4KB, QD1)Up to 12,000 IOPS
Random Write (4KB, QD1)Up to 43,000 IOPS
Environment
Average Power Consumption (system level)Average: 5.7 Watts
Maximum: 7.0 Watts (Burst mode)
Power consumption (Idle)Max. 1.7 Watts
TRIM Support1.5 Million Hours Reliability (MTBF)
Operating Temperature0 °C to 70 °C (Measured by SMART Temperature. Proper airflow recommended)
Shock1500G , duration 0.5m sec, 3 axis
FAQ

What is V-NAND technology?

Shedding light on a whole new standard of capacity and performance.

Samsung V-NAND technology overcomes the capacity limitations of traditional 2D NAND technology with its revolutionary vertical design.
V-NAND also applies innovative Charge Trap Flash (CTF) technology which prevents data corruption caused by cell-to-cell interference.
The synergy of both structural and material innovations leads to improved speed, power efficiency, and endurance.



Vertical expansion breaks through horizontal limit

Samsung revolutionized the storage industry by shifting the planar NAND to a vertical structure. Samsung V-NAND technology features a unique design that stacks 48 layers on top of one another instead of trying to decrease the cells’ pitch size. Samsung used Channel Hole Technology (CHT) to enable cells to connect vertically with one another through a cylindrical channel that runs through stacked cells.





Material innovation that no one can match

Samsung has shifted the paradigm of material used for NAND. Samsung applies the innovative CTF technology which uses a non-conductive layer of Silicon Nitride (SiN), temporarily trapping electrical charges to maintain cell integrity.

This non-conductive layer wraps around the control gate of the cell, acting as an insulator that holds charges to prevent data corruption caused by cell-to-cell interference.







Vertical architecture paves the way for amplified capacity

Layering cells vertically in three-dimensional stacks provides much greater cell density. Samsung V-NAND technology lets heavy-workload users and data centers store and handle more data with greatly improved capacity.

Samsung V-NAND enables up to 100 layers of cells to be stacked with the potential to scale the density up to 1 Terabit. The 2D planar NAND density ceiling can only reach the minimum density of V-NAND.





Innovative algorithms equal faster performance

Traditional planar NAND memory requires the creation of sets of complex program algorithms to prevent data corruption caused by cell-to-cell interference. However, Samsung V-NAND is virtually immune to cell-to-cell interference.

V-NAND does not need to go through a complex program algorithm to write data, and this enables the memory to write data up to two times faster than traditional 2D planar NAND flash memory.





Unprecedented power efficiency

Since V-NAND technology has eliminated the issue of cell-to-cell interference, its programming steps are greatly reduced. As a result, power consumption is substantially lowered by up to 45 percent compared to planar NAND memory.





Embedded high endurance to store your valuable data

Samsung V-NAND provides up to twice the endurance of planar NAND. V-NAND decreases its electric field because its cells are slightly larger, and employs CTF-based insulators eliminating the risk of cell-to-cell interference, resulting in superior retention performance.

In comparison between 3-bit and 2-bit, Samsung 3-bit V-NAND shows endurance similar to that of 2-bit planar NAND, and even better performance in heavy workloads. V-NAND also shows a sustained P/E cycle for longer periods of time.
